AD6311

1/8- to 1/16 Duty VFD Controller/Driver

AD6311 Features

* - 4-pin serial interface - Key scanning (12x4 matrices) - Programming display modes (16-digit & 12- segment to 8-digit & 20-segment) - Programming dimming step - High-voltage output (VDD-35V max) - 5 channels LED ports - 4-pin general-purpose input port - Built-in oscillator - No external resistor n

AD6311 General Description

The AD6311 is a VFD (Vacuum Fluorescent Display) controller/driver that is driven on a 1/8- to 1/16 duty factor (include key scan). It consists of 12 segment/key scan output lines, 8 grid output lines, 8 segment/grid output drive lines, a display memory, a control circuit, and a key scan circuit. Se.

AD6311 Datasheet (205.57 KB)

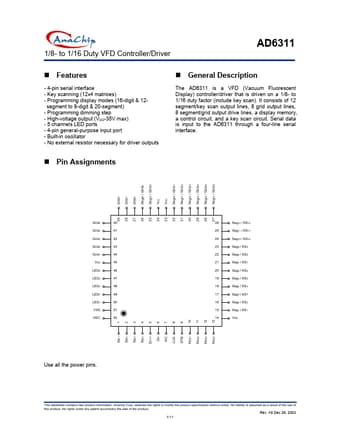

Preview of AD6311 PDF

Datasheet Details

Part number:

AD6311

Manufacturer:

Anachip

File Size:

205.57 KB

Description:

1/8- to 1/16 duty vfd controller/driver.
