AD633-EP, Low Cost Analog Multiplier

Enhanced Product .
The AD633-EP is a functionally complete, four-quadrant, analog multiplier.

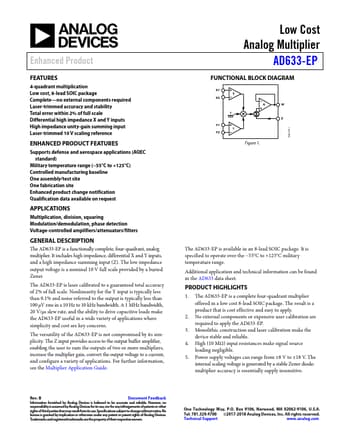

datasheet Preview Page 1 from Datasheet4u.com

AD633-EP-AnalogDevices.pdf

AD633-EP Datasheet Preview — Preview of AD633-EP PDF

Datasheet Details

Part number:

AD633-EP

Manufacturer:

Analog Devices ↗

File Size:

178.20 KB

Description:

Low Cost Analog Multiplier

Features

* 4-quadrant multiplication Low cost, 8-lead SOIC package Complete
* no external components required Laser-trimmed accuracy and stability Total error within 2% of full scale Differential high impedance X and Y inputs High impedance unity-gain summing input Laser-trimmed 10 V scaling reference EN

Applications

* (AQEC standard) Military temperature range (
* 55°C to +125°C) Controlled manufacturing baseline One assembly/test site One fabrication site Enhanced product change notification Qualification data available on request APPLICATIONS Multiplication, division, squaring Modulation/demodulation, pha
