AD6312

1/4- to 1/11 Duty VFD Controller/Driver

AD6312 Features

* ˙4-pin serial interface ˙Key scanning (6× 4 matrices) ˙Programming display modes (11-segments & 11- digits to 16-segments & 6-digits) ˙Programming dimming step ˙High-voltage output (VDD-35V max). ˙4 channels LED ports. ˙4-pin General-purpose input port ˙Built-in oscillator ˙No external resistor nece

AD6312 General Description

The AD6312 is a VFD (Vacuum Fluorescent Display) controller/driver that is driven on a 1/4- to 1/11 duty factor (include key scan). It consists of 5 segment output lines, 6 segment/key scan output lines, 6 grid output lines, 5 segment/grid output drive lines, a display memory, a control circuit, and.

AD6312 Datasheet (226.74 KB)

Preview of AD6312 PDF

Datasheet Details

Part number:

AD6312

Manufacturer:

Anachip

File Size:

226.74 KB

Description:

1/4- to 1/11 duty vfd controller/driver.

📁 Related Datasheet

AD6311 - 1/8- to 1/16 Duty VFD Controller/Driver (Anachip)
1/8- to 1/16 Duty VFD Controller/Driver AD6311 Features - 4-pin serial interface - Key scanning (12x4 matrices) - Programming display modes (16-digi.

AD6315 - 1/4- to 1/12 Duty VFD Controller/Driver (Anachip)
1/4- to 1/12 Duty VFD Controller/Driver AD6315 Features - Multiple display modes (16-segment & 12-digit to 24-segment & 4-digit) - Key scanning (16 .

AD630 - Balanced Modulator/Demodulator (Analog Devices)
a FEATURES Recovers Signal from +100 dB Noise 2 MHz Channel Bandwidth 45 V/ ␮s Slew Rate –120 dB Crosstalk @ 1 kHz Pin Programmable Closed Loop Gains .

AD632 - Internally Trimmed Precision IC Multiplier (Analog Devices)
a FEATURES Pretrimmed to ± 0.5% Max 4-Quadrant Error All Inputs (X, Y and Z) Differential, High Impedance for [(X1–X2)(Y1–Y2)/10] + Z2 Transfer Functi.

AD633 - Low Cost Analog Multiplier (Analog Devices)
Data Sheet FEATURES 4-quadrant multiplication Low cost, 8-lead SOIC and PDIP packages Complete—no external ponents required Laser-trimmed accuracy .

AD633-EP - Low Cost Analog Multiplier (Analog Devices)
Enhanced Product FEATURES 4-quadrant multiplication Low cost, 8-lead SOIC package Complete—no external ponents required Laser-trimmed accuracy and .

AD636 - Low Level/ True RMS-to-DC Converter (Analog Devices)
a FEATURES True RMS-to-DC Conversion 200 mV Full Scale Laser-Trimmed to High Accuracy 0.5% Max Error (AD636K) 1.0% Max Error (AD636J) Wide Response Ca.

AD637 - Wide-Band RMS-to-DC Converter (Analog Devices)
Data Sheet FEATURES High accuracy 0.02% maximum nonlinearity, 0 V to 2 V rms input 0.1% additional error to crest factor of 3 Wide bandwidth 8 MHz at .

TAGS

AD6312 Duty VFD Controller Driver Anachip

Image Gallery

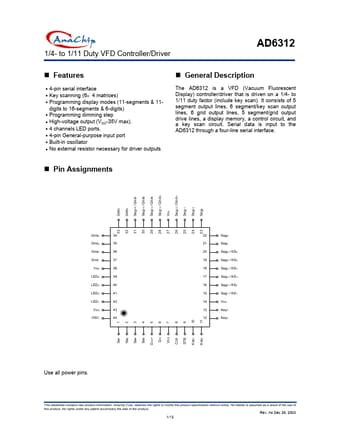

AD6312 Datasheet Preview Page 2 AD6312 Datasheet Preview Page 3
