AD632

Internally Trimmed Precision IC Multiplier

AD632 Features

* Pretrimmed to ± 0.5% Max 4-Quadrant Error All Inputs (X, Y and Z) Differential, High Impedance for [(X1

* X2)(Y1

* Y2)/10] + Z2 Transfer Function Scale-Factor Adjustable to Provide up to X10 Gain Low Noise Design: 90 ␮ V rms, 10 Hz

* 10 kHz Low Cost, Monolithic Construction Excelle

AD632 General Description

The AD632 is an internally-trimmed monolithic four-quadrant multiplier/divider. The AD632B has a maximum multiplying error of ± 0.5% without external trims. Excellent supply rejection, low temperature coefficients and long term stability of the on-chip thin film resistors and buried zener reference.

AD632 Datasheet (177.85 KB)

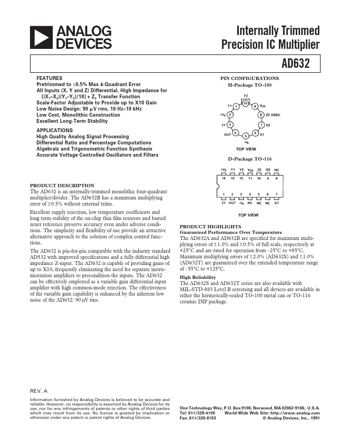

Preview of AD632 PDF

Datasheet Details

Part number:

AD632

Manufacturer:

Analog Devices ↗

File Size:

177.85 KB

Description:

Internally trimmed precision ic multiplier.
