AH276 - COMPLEMENTARY PUTPUT HALL EFFENT LATCH

AH276 Description

AH276 Complementary Output Hall Effect Latch * .
AH276 are integrated Hall sensors with output drivers, mainly designed for electronic commutation of brush-less DC Fan.

AH276 Features

* - On-chip Hall sensor with two different sensitivity and hysteresis settings for AH276 - 400mA (avg) output sink current - Built-in protecting diode only for chip reverse power connecting - -20°C to 85°C operating temperature - Low profile 4 pin SIP package

AH276 Applications

* Dual-coil Brush-less DC Motor Dual-coil Brush-less DC Fan Revolution Counting Speed Measurement
* Ordering Information AH276 X - X X X Wafer Body K: K version Wafer Body Q: Q version Wafer Body Package P: SIP-4L Lead L : Lead Free Packing Blank : Tube or Bulk
* Typical Applicat

📥 Download Datasheet

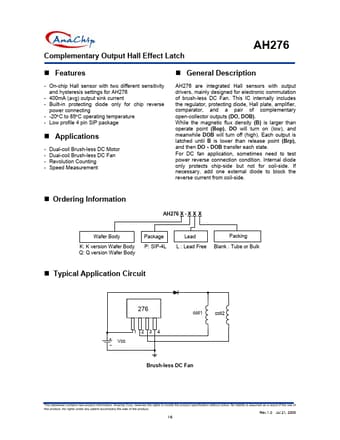

Preview of AH276 PDF
