AH276Q

COMPLEMENTARY OUTPUT HALL EFFECT LATCH

AH276Q Features

* On-chip Hall sensor with two different sensitivity and hysteresis settings for AH276 Built-in protecting diode only for chip reverse power connecting -20°C to 85°C operating temperature Lead Free Finish/RoHS Compliant for Lead Free products (Note 1)

AH276Q General Description

AH276 are integrated Hall sensors with output drivers, mainly designed for electronic commutation of brush-less DC Fan. This IC internally includes the regulator, protecting diode, Hall plate, amplifier, comparator, and a pair of complementary open-collector outputs (DO, DOB). While the magnetic flu.

AH276Q Datasheet (236.88 KB)

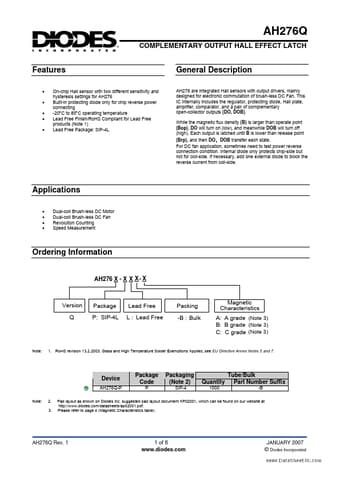

Preview of AH276Q PDF

Datasheet Details

Part number:

AH276Q

Manufacturer:

DIODES ↗ Incorporated

File Size:

236.88 KB

Description:

Complementary output hall effect latch.
