AH285 Datasheet, Controller, Diodes Incorporated

AH285 Features

  • Controller Applications
  • Single-chip solution
  • Operating Voltage: 3.8V to 20V
  • Built-in Hall sensor and input amplifier
  • Tachometer (FG) output
  • Roto

PDF File Details

Part number:

AH285

Manufacturer:

DIODES ↗ Incorporated

File Size:

93.18kb

Download:

📄 Datasheet

Description:

Hall-effect smart fan motor controller. Pin Assignments The AH285 is a single-chip solution for driving two-coil brushless direct current (BLDC) fans and motors. The devic

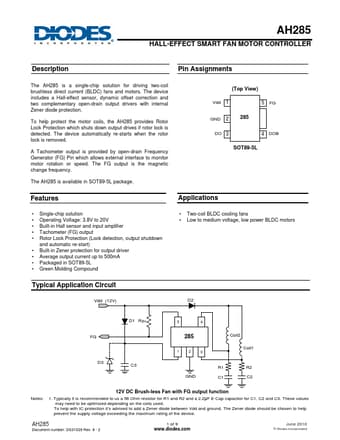

Datasheet Preview: AH285 📥 Download PDF (93.18kb)
Page 2 of AH285 Page 3 of AH285

AH285 Application

  • Applications
  • Single-chip solution
  • Operating Voltage: 3.8V to 20V
  • Built-in Hall sensor and input amplifier
  • T
