AH284

Hall-Effect Smart Fan Motor Controller

AH284 Features

* - On chip Hall sensor - Rotor-locked shutdown - Automatically restart - Built-in Zener protection for output driver - Operating voltage: 3.8V~20 V - Output current: IO(AVE) = 500mA for SIP-4/SOT89-5 - Output current: IO(AVE) = 400mA for SOT23-5 - Package: SIP-4L, SOT23-5L, SOT89-5L

* Genera

AH284 General Description

AH284 is a monolithic fan motor controller with Hall sensor’s capability. It contains two complementary open-drain drivers for motor’s coil driving, automatic lock shutdown and restart function relatively. To avoid coil burning, rotor-lock shutdown detection circuit shut down the output driver if th.

AH284 Datasheet (271.76 KB)

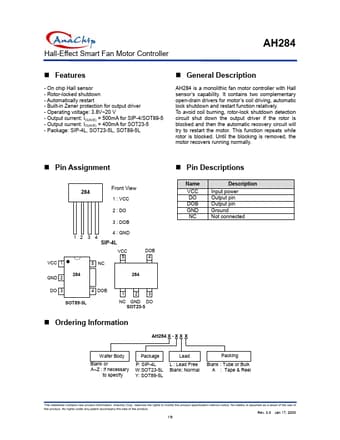

Preview of AH284 PDF

Datasheet Details

Part number:

AH284

Manufacturer:

ETC

File Size:

271.76 KB

Description:

Hall-effect smart fan motor controller.
