AH292

Low Voltage Hall-Effect Smart Fan Motor Controller

AH292 Features

* - On chip Hall sensor - Rotor-locked shutdown - Automatically restart - Frequency generator (FG) output - Buil t-in Zener protection for output driver - Operating voltage: 1.8V~5.75 V - Output current: IO( AVE ) = 400 mA - Package: SIP-5L, SOT23-5L, SOT89-5L

* General Description AH292 is a

AH292 General Description

AH292 is a monolithic fan motor controller with Hall sensor’s capability. It contains two complementary open-collector transistors for motor’s coil driving, automatic lock current shutdown, and recovery protections. Besides, frequency generator (FG) output is for speed detection relatively. To avoid.

AH292 Datasheet (272.95 KB)

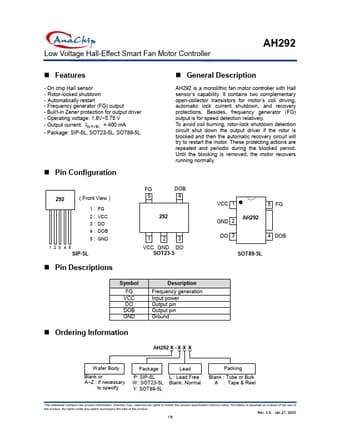

Preview of AH292 PDF

Datasheet Details

Part number:

AH292

Manufacturer:

ETC

File Size:

272.95 KB

Description:

Low voltage hall-effect smart fan motor controller.
