AH291 Datasheet, Controller, ETC

AH291 Features

  • Controller - On chip Hall sensor - Rotor-locked shutdown - Automatically restart - Built-in Zener protection for output driver - Operating voltage: 1.8V~5.75 V - Output current: IO( AVE ) = 400 mA

PDF File Details

Part number:

AH291

Manufacturer:

ETC

File Size:

269.21kb

Download:

📄 Datasheet

Description:

Low voltage hall-effect smart fan motor controller. AH291 is a monolithic fan motor controller with Hall sensor’s capability. It contains two complementary open-collector drivers for mo

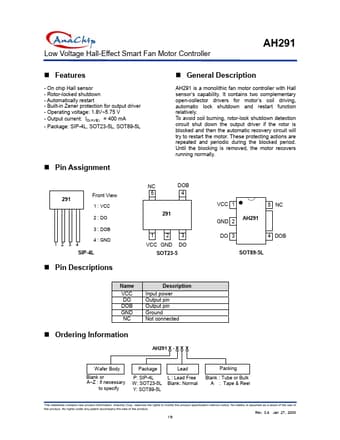

Datasheet Preview: AH291 📥 Download PDF (269.21kb)
Page 2 of AH291 Page 3 of AH291
