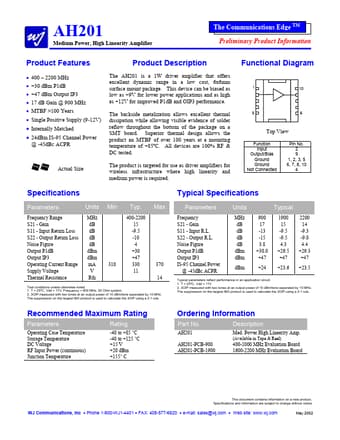

AH201 Datasheet, Amplifier, ETC

AH201 Features

• Amplifier
• 400
    – 2200 MHz
• +30 dBm P1dB
• +47 dBm Output IP3
• 17 dB Gain @ 900 MHz
• z MTBF >100 Years
• Single Positive Supply (

PDF File Details

Part number:

AH201

Manufacturer:

ETC

File Size:

220.47kb

Download:

📄 Datasheet

Description:

Medium power/ high linearity amplifier. The AH201 is a 1W driver amplifier that offers excellent dynamic range in a low cost, 6x6mm surface mount package. This device can be

AH201 Application

• Applications and as high as +12V for improved P1dB and OIP3 performance. The backside metalization allows excellent thermal dissipation while allowi
