AH289

HIGH VOLTAGE HALL-EFFECT SMART FAN MOTOR CONTROLLER

AH289 Features

* NOT RECOMMENDED FOR NEW DESIGN

* NO ALTERNATE PART AH289 HIGH VOLTAGE HALL-EFFECT SMART FAN MOTOR CONTROLLER General Description

* On Chip Hall Sensor

* Rotor-Locked Shutdown

* Automatically Restart

* Rotor-State Detection (RD) Output

* Built-in Z

AH289 General Description



* On Chip Hall Sensor

* Rotor-Locked Shutdown

* Automatically Restart

* Rotor-State Detection (RD) Output

* Built-in Zener Protection for Output Driver

* Operating Voltage: 3.8V~28V

* Output Current: IO (AVE) = 400mA

* Lead Free Packag.

AH289 Datasheet (339.53 KB)

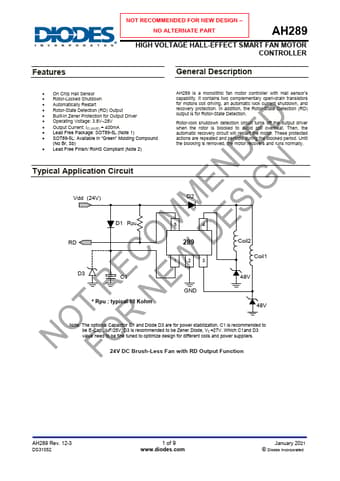

Preview of AH289 PDF

Datasheet Details

Part number:

AH289

Manufacturer:

DIODES ↗ Incorporated

File Size:

339.53 KB

Description:

High voltage hall-effect smart fan motor controller.
