AH286 Datasheet - Diodes Incorporated

HALL-EFFECT SMART FAN MOTOR CONTROLLER

AH286 Features

* On chip Hall sensor Rotor-locked shutdown Automatically restart Rotor-state detection (RD) output Built-in Zener protection for output driver Operating voltage: 3.8V~20 V Output current: IO(AVE) = 500mA for SOT89-5L Lead

AH286 General Description

AH286 is a monolithic fan motor controller with Hall sensor’s capability. It contains two complementary open-drain transistors for motor’s coil driving, automatic lock current shutdown, and recovery protections. In addition, rotor-state detection (RD) output is for Rotor-state detection. Rotor-lock .

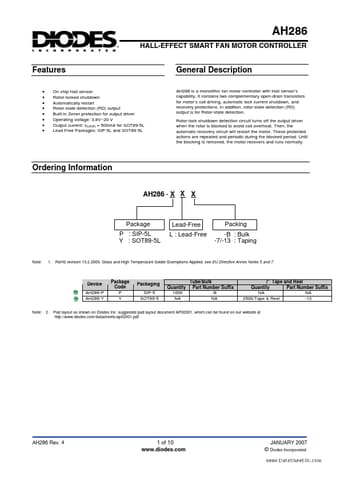

AH286 Datasheet (184.77 KB)

AH286 Datasheet Preview — Preview of AH286 PDF

Datasheet Details

Part number:

AH286

Manufacturer:

DIODES ↗ Incorporated

File Size:

184.77 KB

Description:

Hall-effect smart fan motor controller.
