AH278 - HIGH VOLTAGE HALL EFFECT LATCH

AH278 Description

HIGH VOLTAGE HALL EFFECT LATCH General .
Features Data Sheet AH278 The AH278 is an integrated Hall sensor with output driver designed for electronic commutation of brushless DC motor appli.

AH278 Applications

* The device includes an onchip Hall sensor for magnetic sensing, an amplifier that amplifies the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection and two complementary open-collector drivers for sinking large load current. It also includes an internal band-gap regu

📥 Download Datasheet

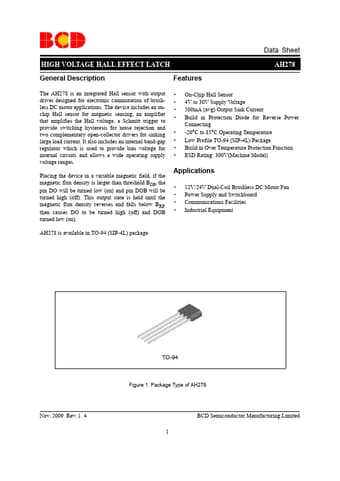

Preview of AH278 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AH278
Manufacturer
BCD Semiconductor
File Size
290.34 KB
Datasheet
AH278_BCDSemiconductor.pdf
Description
HIGH VOLTAGE HALL EFFECT LATCH
