AH350 Linear Hall-Effect Sensors

AH350 Description

www.DataSheet4U.com AH350 Linear Hall-Effect Sensors * .
The AH350 Hall-effect sensors accurately track extremely small changes in magnetic flux density. changes are generally too small to operate Hal.

AH350 Features

* - Extremely Sensitive - Flat Response to 23 KHz - Low-Noise Output - 4.5V to 6V Operation - SIP-3L and SOT23-3L Package

AH350 Applications

* shown, a permanent bias magnet is attached with epoxy glue to the back of the epoxy package. The presence of ferrous material at the face of the package acts as a flux concentrator. The south pole of a magnet is attached to the back of the package if the Hall-effect IC is to sense the presence of fe

📥 Download Datasheet

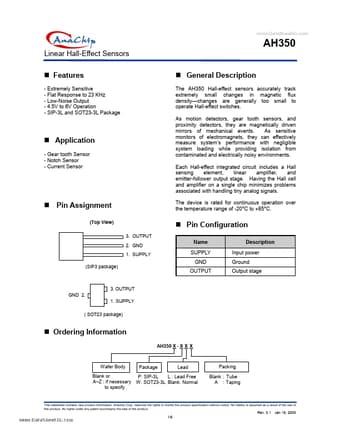

Preview of AH350 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AH350
Manufacturer
Anachip
File Size
203.83 KB
Datasheet
AH350_Anachip.pdf
Description
Linear Hall-Effect Sensors
