AP2008 - PWM Buck Controller

AP2008 Description

PWM Buck Controller * .
The AP2008 integrates Pulse-Width-Modulation (PWM) control circuit into a single chip, mainly designs for power-supply regulator.

AP2008 Features

* - PWM Buck Control Circuitry - Operating voltage can be up to 20V - Under voltage Lockout (UVLO) Protection - Short Circuit Protection (SCP) - Soft-start circuit - Variable Oscillator Frequency
* 300KHz Max - 0.77V voltage reference Output - 8-pin PDIP and SOP packages

AP2008 Applications

* - Backlight inverter - LCD Monitor - XDROM, XDSL Product - DC/DC converters in computers, etc.
* Pin Assignment ( Top View ) OUT VCC COMP FB 1 2 3 4 8 GND 7 CT 6 SS 5 SCP PDIP/SOP AP2008

📥 Download Datasheet

Preview of AP2008 PDF

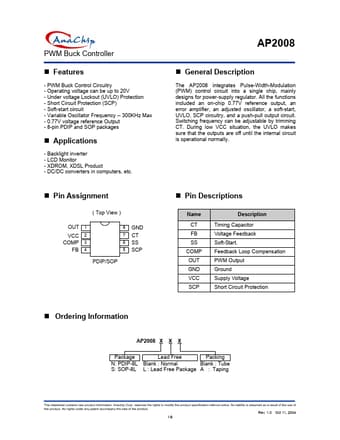

datasheet Preview Page 2 datasheet Preview Page 3
