ASB00340 Datasheet - Anachip

SMD Schottky Barrier Diode

ASB00340 General Description

0603(1608) 0.071(1.80) 0.063(1.60) 0.039(1.00) 0.031(0.80) 0.012(0.30)Typ. 0.014(0.35)Typ. Dimensions in inches and (millimeter) P+ 1005(2512) 0.102(2.60) 0.095(2.40) Mechanical Data - Case :0603(1608) 1005(2512) standard package, molded plastic. - Terminals : Gold plated, solderable per MIL-ST.

ASB00340 Datasheet (165.51 KB)

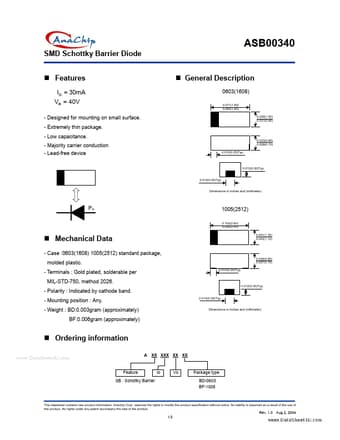

Preview of ASB00340 PDF

Datasheet Details

Part number:

ASB00340

Manufacturer:

Anachip

File Size:

165.51 KB

Description:

Smd schottky barrier diode.
