ASB0340, ASB0320 Datasheet - Anachip

ASB0340 SMD Schottky Barrier Diode

0603(1608) 0.071(1.80) 0.063(1.60) 0.039(1.00) 0.031(0.80) 0.012(0.30)Typ. 0.014(0.35)Typ. Dimensions in inches and (millimeter) P+ 1005(2512) 0.102(2.60) 0.095(2.40) Mechanical Data - Case : 0603(1608) 1005(2512) standard package, molded plastic. - Terminals : Gold plated, solderable per MIL-S.

ASB0320_Anachip.pdf

This datasheet PDF includes multiple part numbers: ASB0340, ASB0320. Please refer to the document for exact specifications by model.

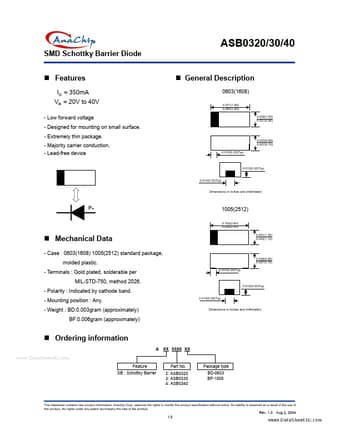

ASB0340 Datasheet Preview Page 2 ASB0340 Datasheet Preview Page 3

Datasheet Details

Part number:

ASB0340, ASB0320

Manufacturer:

Anachip

File Size:

171.97 KB

Description:

Smd schottky barrier diode.

Note:

This datasheet PDF includes multiple part numbers: ASB0340, ASB0320.
Please refer to the document for exact specifications by model.
