ASB0320 Datasheet, Diode, Anachip

ASB0320 Features

  • Diode IO = 350mA VR = 20V to 40V - Low forward voltage - Designed for mounting on small surface. - Extremely thin package. - Majority carrier conduction. - Lead-free device 0.010(0.25)Typ. 0.

PDF File Details

Part number:

ASB0320

Manufacturer:

Anachip

File Size:

171.97kb

Download:

📄 Datasheet

Description:

Smd schottky barrier diode. 0603(1608) 0.071(1.80) 0.063(1.60) 0.039(1.00) 0.031(0.80) 0.012(0.30)Typ. 0.014(0.35)Typ. Dimensions in inches and (millimeter) P

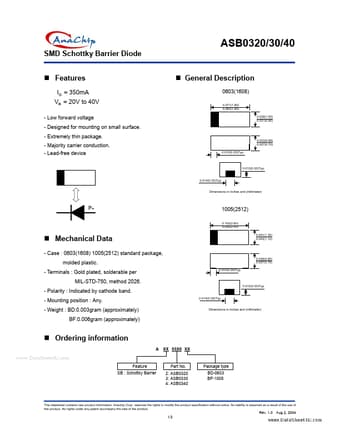

Datasheet Preview: ASB0320 📥 Download PDF (171.97kb)
Page 2 of ASB0320 Page 3 of ASB0320
