AD5142A

Nonvolatile Digital Potentiometer

AD5142A Features

* 10 kΩ and 100 kΩ resistance options

* Resistor tolerance: 8% maximum

* Wiper current: ±6 mA

* Low temperature coefficient: 35 ppm/°C

* Wide bandwidth: 3 MHz

* Fast start-up time < 75 µs

* Linear gain setting mode

* Single- and dual-supply operation

* Independent

AD5142A General Description

The AD5122A/AD5142A potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins. The low resistor tolerance and low nominal temperature coefficient sim.

AD5142A Datasheet (1.89 MB)

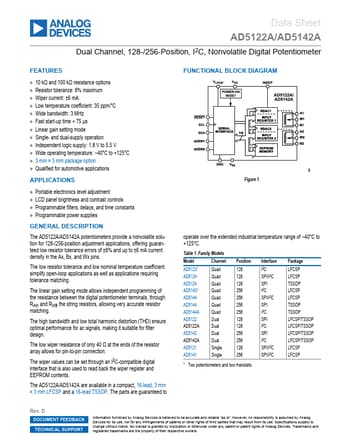

Preview of AD5142A PDF

Datasheet Details

Part number:

AD5142A

Manufacturer:

Analog Devices ↗

File Size:

1.89 MB

Description:

Nonvolatile digital potentiometer.
