AD5143

Nonvolatile Digital Potentiometer

AD5143 Features

* 10 kΩ and 100 kΩ resistance options Resistor tolerance: 8% maximum Wiper current: ±6 mA Low temperature coefficient: 35 ppm/°C Wide bandwidth: 3 MHz Fast start-up time < 75 μs Linear gain setting mode Single- and dual-supply operation Wide operating temperature:

* 40°C to +125°C 3 mm × 3 mm p

AD5143 General Description

The AD5123/AD5143 potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins. The low resistor tolerance and low nominal temperature coefficient simpl.

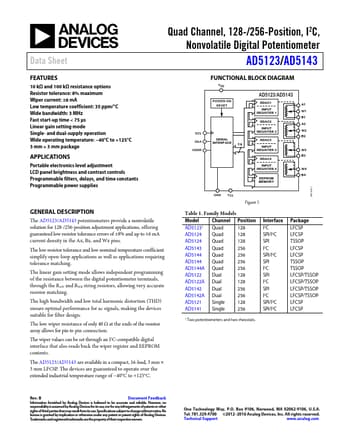

AD5143 Datasheet (724.24 KB)

Preview of AD5143 PDF

Datasheet Details

Part number:

AD5143

Manufacturer:

Analog Devices ↗

File Size:

724.24 KB

Description:

Nonvolatile digital potentiometer.
