AD5144, AD5124 Nonvolatile Digital Potentiometer

AD5144 Description

Data Sheet .
The AD5124/AD5144/AD5144A potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resisto.

AD5144 Features

* 10 kΩ and 100 kΩ resistance options Resistor tolerance: 8% maximum Wiper current: ±6 mA Low temperature coefficient: 35 ppm/°C Wide bandwidth: 3 MHz Fast start-up time < 75 µs Linear gain setting mode Single- and dual-supply operation Independent logic supply: 1.8 V to 5.5 V Wide operating temperatu

AD5144 Applications

* Portable electronics level adjustment LCD panel brightness and contrast controls Programmable filters, delays, and time constants Programmable power supplies Quad Channel, 128-/256-Position, I2C/SPI, Nonvolatile Digital Potentiometer AD5124/AD5144/AD5144A FUNCTIONAL BLOCK DIAGRAM VLOGIC VDD LRD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AD5144, AD5124. Please refer to the document for exact specifications by model.

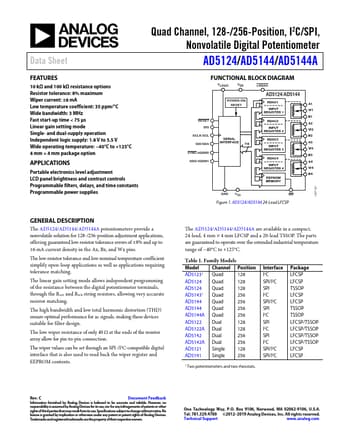

datasheet Preview Page 2 datasheet Preview Page 3
