AD5301 Datasheet, Dacs, Analog Devices

AD5301 Features

  • Dacs AD5301: buffered voltage output 8-bit DAC AD5311: buffered voltage output 10-bit DAC AD5321: buffered voltage output 12-bit DAC 6-lead SOT-23 and 8-lead MSOP packages Micropower operati

PDF File Details

Part number:

AD5301

Manufacturer:

Analog Devices ↗

File Size:

453.69kb

Download:

📄 Datasheet

Description:

Voltage-output 8-/10-/12-bit dacs. The AD5301/AD5311/AD53211 are single 8-/10-/12-bit, buffered, voltage-output DACs that operate from a single 2.5 V to 5.5 V supply, c

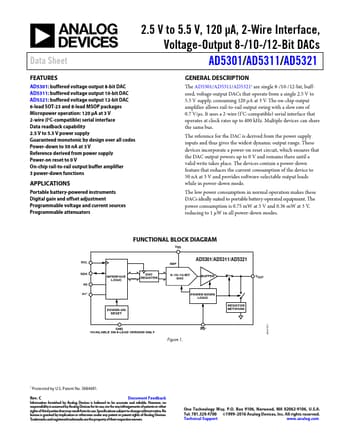

Datasheet Preview: AD5301 📥 Download PDF (453.69kb)
Page 2 of AD5301 Page 3 of AD5301

AD5301 Application

  • Applications Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuato
