AD5545-KGD Datasheet, Dac, Analog Devices

AD5545-KGD Features

  • Dac 16-bit resolution ±1 LSB DNL monotonic ±1 LSB INL 2 mA full-scale current ± 20%, with VREF = 10 V 0.5 µs settling time 2-quadrant reference multiplying 6.9 MHz bandwidth Zero or midscal

PDF File Details

Part number:

AD5545-KGD

Manufacturer:

Analog Devices ↗

File Size:

165.94kb

Download:

📄 Datasheet

Description:

16-bit dac. The AD5545-KGD is a 16-bit, current output, digital-to-analog converter (DAC) designed to operate from a 4.5 V to 5.5 V supply range.

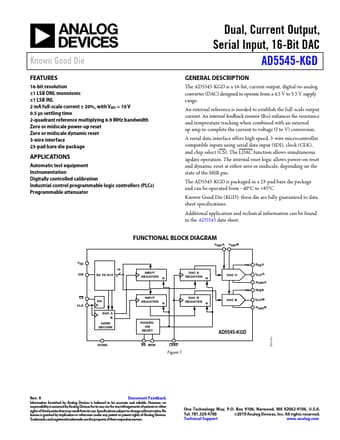

Datasheet Preview: AD5545-KGD 📥 Download PDF (165.94kb)
Page 2 of AD5545-KGD Page 3 of AD5545-KGD

AD5545-KGD Application

  • Applications Automatic test equipment Instrumentation Digitally controlled calibration Industrial control programmable logic controllers (PLCs) Prog
