AD5750-1 - Industrial Current/Voltage Output Driver

Analog Devices

📥 Download Datasheet

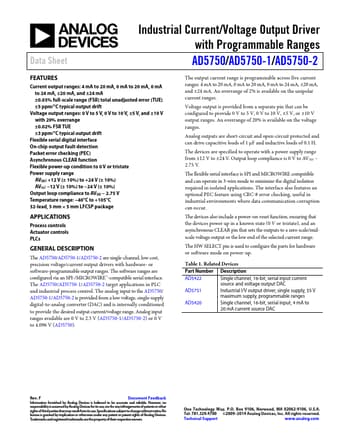

AD5750-1 Datasheet Preview — Preview of AD5750-1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AD5750-1
Manufacturer: Analog Devices ↗
File Size: 837.63 KB
Datasheet: AD5750-1-AnalogDevices.pdf
Description: Industrial Current/Voltage Output Driver

AD5750-1 Product details

Description

The AD5750/AD5750-1/AD5750-2 are single-channel, low cost, precision voltage/current output drivers with hardwar.

Features

Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA, 0 mA to 24 mA, ±20 mA, and ±24 mA ±0.03% full-scale range (FSR) total unadjusted error (TUE) ±5 ppm/°C typical output drift Voltage output ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, and ±10 V with 20% overrange ±0.02% FSR TUE ±3 ppm/°C typical output drift Flexible serial digital interface On-chip output fault detection Packet error checking (PEC) Asynchronous.
