AD5752, Voltage Output DACs

www.DataSheet4U.com Complete, Dual, 12-/14-/16-Bit, Serial Input, Unipolar/Bipolar, Voltage Output DACs AD5722/AD5732/AD5752 .
The AD5722/AD5732/AD5752 are dual, 12-/14-/16-bit, serial input, voltage output, digital-to-analog converters.

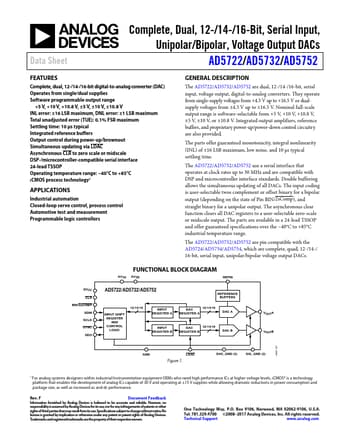

datasheet Preview Page 1 from Datasheet4u.com

AD5752_AnalogDevices.pdf

AD5752 Datasheet Preview — Preview of AD5752 PDF

Datasheet Details

Part number:

AD5752

Manufacturer:

Analog Devices ↗

File Size:

1.18 MB

Description:

Voltage Output DACs

Features

* Complete, dual, 12-/14-/16-bit digital-to-analog converter (DAC) Operates from single/dual supplies Software programmable output range +5 V, +10 V, +10.8 V, ±5 V, ±10 V, ±10.8 V INL error: ±16 LSB maximum, DNL error: ±1 LSB maximum Total unadjusted error (TUE): 0.1% FSR maximum Settling time: 10 µs

Applications

* Industrial automation Closed-loop servo control, process control Automotive test and measurement Programmable logic controllers FUNCTIONAL BLOCK DIAGRAM AVSS AVDD REFIN DVCC CLR BIN/2sCOMP SDIN SCLK SYNC SDO INPUT SHIFT REGISTER AND CONTROL LOGIC 12/14/16 12/14/16 DAC A VOUTA AD5722/AD5732/AD5752
