AD705, AD7 Picoampere Input Current Bipolar Op Amp

Analog Devices

Description

a .
The AD705 is a low power bipolar op amp that has the low input bias current of a BiFET amplifier but which offers a significantly lower IB drift over.

📥 Download Datasheet

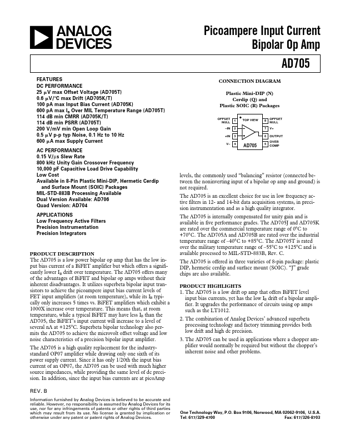

AD705 Datasheet Preview — This datasheet PDF includes multiple part numbers: AD705, AD7. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AD705, AD7
Manufacturer: Analog Devices ↗
File Size: 451.59 KB
Datasheet: AD7-05.pdf
Description: Picoampere Input Current Bipolar Op Amp
Note: This datasheet PDF includes multiple part numbers: AD705, AD7.
Please refer to the document for exact specifications by model.

Features

* DC PERFORMANCE 25 ␮ V max Offset Voltage (AD705T) 0.6 ␮V/؇C max Drift (AD705K/T) 100 pA max Input Bias Current (AD705K) 600 pA max IB Over MIL Temperature Range (AD705T) 114 dB min CMRR (AD705K/T) 114 dB min PSRR (AD705T) 200 V/mV min Open Loop Gain 0.5 ␮V p-p typ Noise, 0.1 Hz to 10 Hz 600 ␮A max S

Applications

* Low Frequency Active Filters Precision Instrumentation Precision Integrators Picoampere Input Current Bipolar Op Amp AD705 CONNECTION DIAGRAM Plastic Mini-DIP (N) Cerdip (Q) and Plastic SOIC (R) Packages OFFSET NULL
* IN +IN V
* 1 2 3 4 TOP VIEW 8 7 6 OFFSET NULL V+ OUTPUT OVER COMP
