AD7390

3 V Serial-Input Micropower 10-Bit and 12-Bit DACs

AD7390 Features

* Micropower

* 100 ␮A Single-Supply

* 2.7 V to 5.5 V Operation Compact 1.75 mm Height SO-8 Package and 1.1 mm Height TSSOP-8 Package AD7390

* 12-Bit Resolution AD7391

* 10-Bit Resolution SPI and QSPI Serial Interface Compatible with Schmitt Trigger Inputs APPLICATIONS Automotiv

AD7390 General Description

The AD7390/AD7391 family of 10-bit and 12-bit voltageoutput digital-to-analog converters is designed to operate from a single 3 V supply. Built using a CBCMOS process, these monolithic DACs offer the user low cost, and ease-of-use in single-supply 3 V systems. Operation is guaranteed over the suppl.

AD7390 Datasheet (199.25 KB)

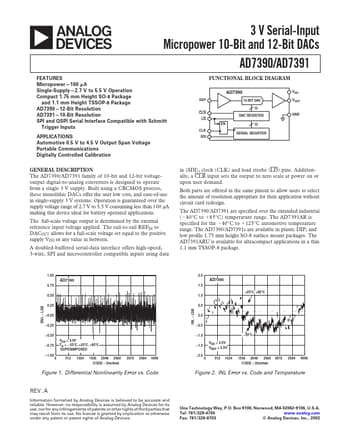

Preview of AD7390 PDF

Datasheet Details

Part number:

AD7390

Manufacturer:

Analog Devices ↗

File Size:

199.25 KB

Description:

3 v serial-input micropower 10-bit and 12-bit dacs.
a 3 V Serial-Input Micropower 10-Bit and 12-Bit DACs AD7390/AD7391 FUNCTIONAL BLOCK DIAGRAM AD7390 REF 12-BIT DAC 12 CLR LD EN CLK SDI DAC REGISTER 1.
