Part number: AD7392
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 199.13KB
Download: 📄 Datasheet
Description: +3 V/ Parallel Input Micropower 10- and 12-Bit DACs
Micropower: 100 A 0.1 A Typical Power Shutdown Single-Supply +2.7 V to +5.5 V Operation Compact 1.1 mm Height TSSOP-20 Package AD7392/12-Bit Resolution AD7393/10-Bit R.
Automotive 0.5 V to 4.5 V Output Span Voltage Portable Communications Digitally Controlled Calibration PC Peripherals GE.

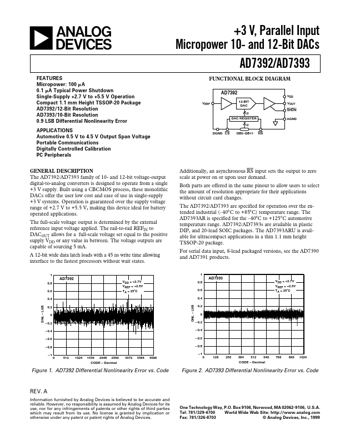

+3 V, Parallel Input Micropower 10- and 12-Bit DACs AD7392/AD7393
FUNCTIONAL BLOCK DIAGRAM
AD7392
VREF 12-BIT DAC 12 DAC REGISTER 12 DGND CS DB0
–DB11 RS VDD VOUT SHDN AGND
The AD7392/AD7393 family of 10- and 12-bit voltage-output di.
