AD7391

+3 Volt Serial-Input Micropower 10-Bit & 12-Bit DACs

AD7391 Features

* Micropower

* 100 ␮A Single-Supply

* ؉2.7 to ؉ 5.5 V Operation Compact 1.75 mm Height SO-8 Package & 1.1 mm Height TSSOP-8 AD7390

* 12-Bit Resolution AD7391

* 10-Bit Resolution SPI & QSPI Serial Interface Compatible with Schmitt Trigger Inputs APPLICATIONS Automotive 0.5 V to

AD7391 General Description

+3 Volt Serial-Input Micropower 10-Bit & 12-Bit DACs AD7390/AD7391 FUNCTIONAL DIAGRAM AD7390 REF 12-BIT DAC 12 CLR LD EN CLK SDI 12 SERIAL REGISTER DAC REGISTER GND VDD VOUT The AD7390/AD7391 family of 10-bit & 12-bit voltage-output digital-to-analog converters is designed to operate from a single.

AD7391 Datasheet (342.06 KB)

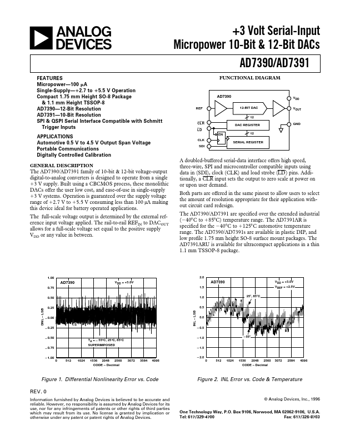

Preview of AD7391 PDF

Datasheet Details

Part number:

AD7391

Manufacturer:

Analog Devices ↗

File Size:

342.06 KB

Description:

+3 volt serial-input micropower 10-bit & 12-bit dacs.
