AD7395

+3 V/ Dual/ Serial Input 12-/10-Bit DACs

AD7395 Features

* Micropower: 100 ␮ A/DAC 0.1 ␮A Typical Power Shutdown Single-Supply +2.7 V to +5.5 V Operation Compact 1.1 mm Height TSSOP-14 Package AD7394/12-Bit Resolution AD7395/10-Bit Resolution Serial Interface with Schmitt Trigger Inputs APPLICATIONS Automotive Output Span Voltage Portable Communications Dig

AD7395 General Description

LDB The AD7394/AD7395 family of dual, 12-/10-bit, voltage output digital-to-analog converters is designed to operate from a single +3 V supply. Built using a CBCMOS process, this monolithic DAC offers the user low cost and ease of use in single-supply +3 V systems. Operation is guaranteed over the.

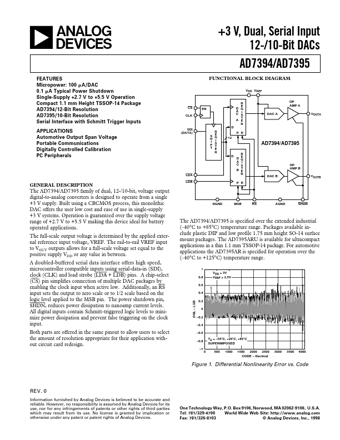

AD7395 Datasheet (304.66 KB)

Preview of AD7395 PDF

Datasheet Details

Part number:

AD7395

Manufacturer:

Analog Devices ↗

File Size:

304.66 KB

Description:

+3 v/ dual/ serial input 12-/10-bit dacs.
