AD7650, Low Cost CMOS ADC

a .
The AD7650 is a 16-bit, 570 kSPS, charge redistributio.

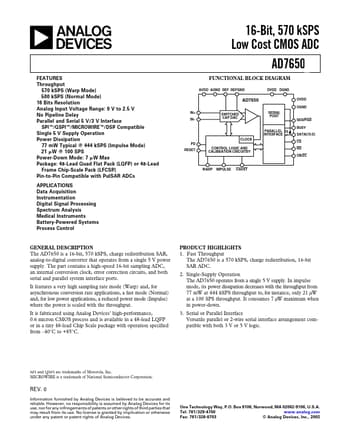

datasheet Preview Page 1 from Datasheet4u.com

AD7650_AnalogDevices.pdf

AD7650 Datasheet Preview — Preview of AD7650 PDF

Datasheet Details

Part number:

AD7650

Manufacturer:

Analog Devices ↗

File Size:

322.72 KB

Description:

Low Cost CMOS ADC

Features

* Throughput 570 kSPS (Warp Mode) 500 kSPS (Normal Mode) 16 Bits Resolution Analog Input Voltage Range: 0 V to 2.5 V No Pipeline Delay Parallel and Serial 5 V/3 V Interface SPI™/QSPI™/MICROWIRE™/DSP Compatible Single 5 V Supply Operation Power Dissipation 77 mW Typical @ 444 kSPS (Impulse Mode) 21 ␮W

Applications

* Data Acquisition Instrumentation Digital Signal Processing Spectrum Analysis Medical Instruments Battery-Powered Systems Process Control 16-Bit, 570 kSPS Low Cost CMOS ADC AD7650 FUNCTIONAL BLOCK DIAGRAM AVDD AGND REF REFGND DVDD DGND IN+ IN
* PD RESET AD7650 SWITCHED CAP DAC SERIAL
