AD7656 Datasheet, Adc, Analog Devices

AD7656 Features

• Adc 6 Independent ADCs True Bipolar Analog Inputs Pin/Software Selectable Ranges:- ±10V, ±5V Fast throughput rate: 250 kSPS Specified for VCC of 4.5 V to 5.5 V Low power 160mW at 250 kSPS w

PDF File Details

Part number:

AD7656

Manufacturer:

Analog Devices ↗

File Size:

521.13kb

Download:

📄 Datasheet

Description:

Bipolar 12/14/16-bit adc. The AD7658/AD7657/AD7656 contain six 12/14/16-bit, fast, low power, successive approximation ADCs all in the one package. The AD7658/

AD7656 Application

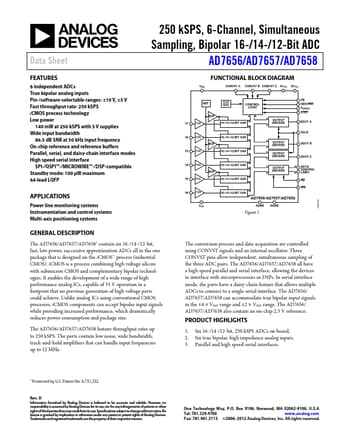

• Applications Power Line Monitoring systems Instrumentation and control systems Multi-axis positioning systems VSS AGND DGND Figure 1. GENERAL D
