AD7656A, Simultaneous Sampling Bipolar 16-Bit ADC

Data Sheet 250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC AD7656A .

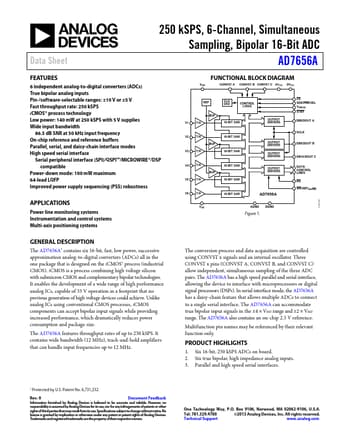

datasheet Preview Page 1 from Datasheet4u.com

AD7656A-AnalogDevices.pdf

AD7656A Datasheet Preview — Preview of AD7656A PDF

Datasheet Details

Part number:

AD7656A

Manufacturer:

Analog Devices ↗

File Size:

487.61 KB

Description:

Simultaneous Sampling Bipolar 16-Bit ADC

Features

* 6 independent analog-to-digital converters (ADCs) True bipolar analog inputs Pin-/software-selectable ranges: ±10 V or ±5 V Fast throughput rate: 250 kSPS iCMOS® process technology Low power: 140 mW at 250 kSPS with 5 V supplies Wide input bandwidth 86.5 dB SNR at 50 kHz input frequency On-chip refe

Applications

* Power line monitoring systems Instrumentation and control systems Multi-axis positioning systems FUNCTIONAL BLOCK DIAGRAM VDD CONVST A CONVST B CONVST C AVCC DVCC REF V1 T/H BUF CLK OSC CONTROL LOGIC 16-BIT SAR OUTPUT DRIVERS V2 T/H V3 T/H BUF 16-BIT SAR 16-BIT SAR V4 T/H V5 T/H BUF 16
