AD7651

Unipolar ADC

AD7651 Features

* Throughput: 100 kSPS 16-bit resolution Analog input voltage range: 0 V to 2.5 V No pipeline delay Parallel and serial 5 V/3 V interface SPI®/QSPITM/MICROWIRETM/DSP compatible Single 5 V supply operation Power dissipation 16 mW typ, 160 µW @ 1 kSPS without REF 38 mW typ with REF 48-lead LQFP and 48-l

AD7651 General Description

The AD7651 is a 16-bit, 100 kSPS, charge redistribution SAR analog-to-digital converter that operates from a single 5 V power supply. The part contains a high speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system i.

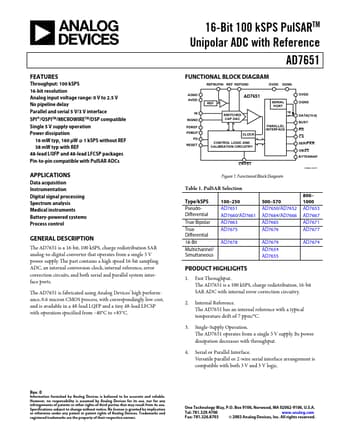

AD7651 Datasheet (661.85 KB)

Preview of AD7651 PDF

Datasheet Details

Part number:

AD7651

Manufacturer:

Analog Devices ↗

File Size:

661.85 KB

Description:

Unipolar adc.
