AD7654 - Simultaneous Sampling ADC

Analog Devices

📥 Download Datasheet

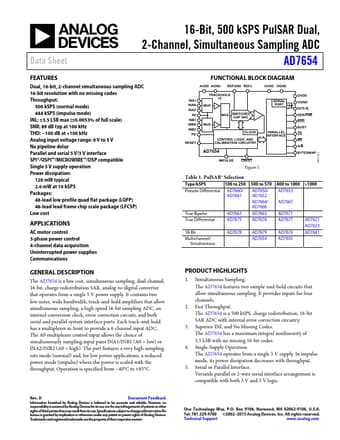

AD7654 Datasheet Preview — Preview of AD7654 PDF

Datasheet Details

Part number: AD7654
Manufacturer: Analog Devices ↗
File Size: 509.53 KB
Datasheet: AD7654-AnalogDevices.pdf
Description: Simultaneous Sampling ADC

AD7654 Product details

Description

The AD7654 is a low cost, simultaneous sampling, dual-channel, 16-bit, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply..

Features

Dual, 16-bit, 2-channel simultaneous sampling ADC 16-bit resolution with no missing codes Throughput: 500 kSPS (normal mode) 444 kSPS (impulse mode) INL: ±3.5 LSB max (±0.0053% of full scale) SNR: 89 dB typ at 100 kHz THD:.
100 dB at +100 kHz Analog input voltage range: 0 V to 5 V No pipeline delay Parallel and serial 5 V/3 V interface SPI®/QSPI™/.
