AD7656-1

16-/14-/12-Bit ADC

AD7656-1 Features

* Pin and software compatible with AD7656/AD7657/AD7658 featuring reduced decoupling requirements 6 independent ADCs True bipolar analog inputs Pin-/software-selectable ranges: ±10 V, ±5 V Fast throughput rate: 250 kSPS iCMOS process technology Low power 140 mW at 250 kSPS with 5 V supplies High noise

AD7656-1 General Description

The AD7656-1/AD7657-1/AD7658-11 are reduced decoupling pinand software-compatible versions of AD7656/AD7657/AD7658. The AD7656-1/AD7657-1/AD7658-1 device.

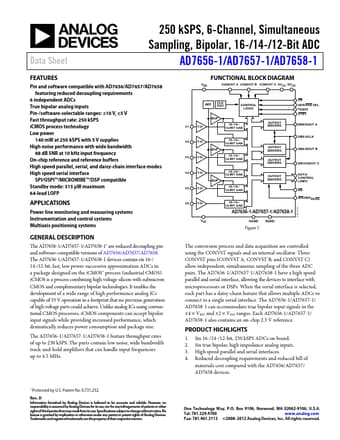

AD7656-1 Datasheet (656.58 KB)

Preview of AD7656-1 PDF

Datasheet Details

Part number:

AD7656-1

Manufacturer:

Analog Devices ↗

File Size:

656.58 KB

Description:

16-/14-/12-bit adc.
