AD8016

High Output Current xDSL Line Driver

AD8016 Features

* xDSL line driver that features full ADSL central office (CO) Performance on ±12 V supplies Low power operation ±5 V to ±12 V voltage supply 12.5 mA/amp (typical) total supply current Power reduced keep alive current of 4.5 mA/amp High output voltage and current drive IOUT = 600 mA 40 V p-p different

AD8016 General Description

The AD8016 high output current dual amplifier is designed for the line drive interface in Digital Subscriber Line systems such as ADSL, HDSL2, and proprietary xDSL systems. The drivers are capable, in full-bias operation, of providing 24.4 dBm output power into low resistance loads, enough to power .

AD8016 Datasheet (550.28 KB)

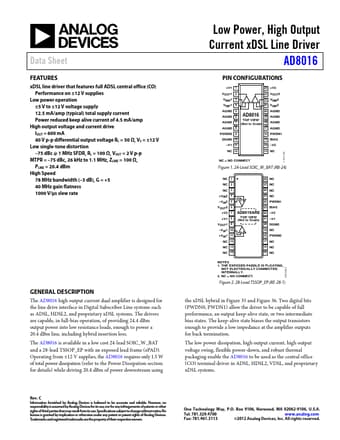

Preview of AD8016 PDF

Datasheet Details

Part number:

AD8016

Manufacturer:

Analog Devices ↗

File Size:

550.28 KB

Description:

High output current xdsl line driver.
