AD8185 Triple 2:1 Multiplexers

The AD8183 (G = +1) and AD8185 (G = +2) are high speed triple 2:1 multiplexers. They offer *3 dB signal bandwidth up to 380 MHz, along with slew rate of 1000 .

AD8185 Features

* Fully Buffered Inputs and Outputs Fast Channel-to-Channel Switching: 15 ns High Speed 380 MHz Bandwidth (

* 3 dB) 200 mV p-p 310 MHz Bandwidth (

* 3 dB) 2 V p-p 1000 V/␮s Slew Rate G = +1, 2 V Step 1150 V/␮s Slew Rate G = +2, 2 V Step Fast Settling Time of 15 ns to 0.1% Low Power: 25 mA

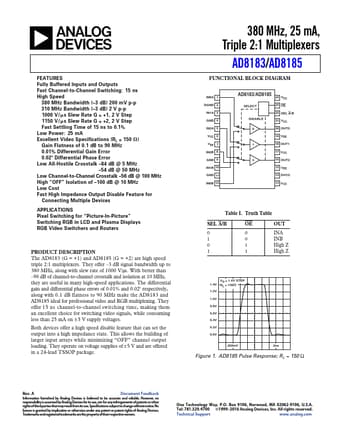

AD8183-AnalogDevices.pdf

AD8185 Datasheet Preview — This datasheet PDF includes multiple part numbers: AD8185, AD8183. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AD8185, AD8183

Manufacturer:

Analog Devices ↗

File Size:

225.18 KB

Description:

Triple 2:1 multiplexers.

Note:

This datasheet PDF includes multiple part numbers: AD8185, AD8183.
Please refer to the document for exact specifications by model.
