AD823 Datasheet, Amplifier, Analog Devices

AD823 Features

  • Amplifier Single-supply operation Output swings rail-to-rail Input voltage range extends below ground Single-supply capability from 3 V to 36 V High load drive Capacitive load drive of 500 pF, G

PDF File Details

Part number:

AD823

Manufacturer:

Analog Devices ↗

File Size:

491.56kb

Download:

📄 Datasheet

Description:

Dual/ 16 mhz/ rail-to-rail fet input amplifier. The AD823 is a dual precision, 16 MHz, JFET input op amp that can operate from a single supply of 3.0 V to 36 V or from dual supplies

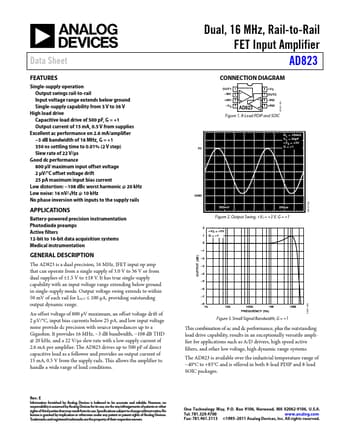

Datasheet Preview: AD823 📥 Download PDF (491.56kb)
Page 2 of AD823 Page 3 of AD823

AD823 Application

  • Applications Battery-powered precision instrumentation Photodiode preamps Active filters 12-bit to 16-bit data acquisition systems Medical instrumen
