AD8231 Datasheet, Amplifier, Analog Devices

AD8231 Features

  • Amplifier
  • Digitally/pin-programmable gain
  • G = 1, 2, 4, 8, 16, 32, 64, or 128
  • Specified from
  • 40°C to +125°C
  • 50 nV/°C maximum input offset drift

PDF File Details

Part number:

AD8231

Manufacturer:

Analog Devices ↗

File Size:

2.11MB

Download:

📄 Datasheet

Description:

Digital programmable instrumentation amplifier. The AD8231 is a low drift, rail-to-rail, instrumentation amplifier with software-programmable gains of 1, 2, 4, 8, 16, 32, 64, or 128

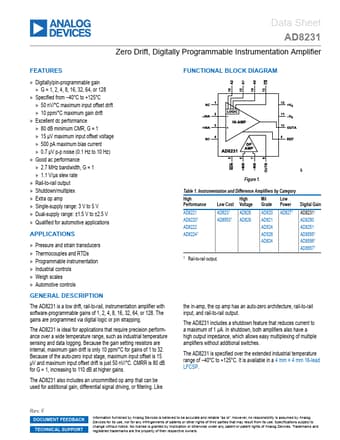

Datasheet Preview: AD8231 📥 Download PDF (2.11MB)
Page 2 of AD8231 Page 3 of AD8231

AD8231 Application

  • Applications APPLICATIONS
  • Pressure and strain transducers
  • Thermocouples and RTDs
  • Programmable instrumentation
