AD8271 Datasheet, Amplifier, Analog Devices

AD8271 Features

  • Amplifier With no external resistors Difference amplifier, gains of ½, 1, or 2 Single-ended amplifier: over 40 different gains Set reference voltage at midsupply Excellent ac specifications 15 MH

PDF File Details

Part number:

AD8271

Manufacturer:

Analog Devices ↗

File Size:

834.57kb

Download:

📄 Datasheet

Description:

Programmable gain precision difference amplifier. The AD8271 is a low distortion, precision difference amplifier with internal gain setting resistors. With no external components, it

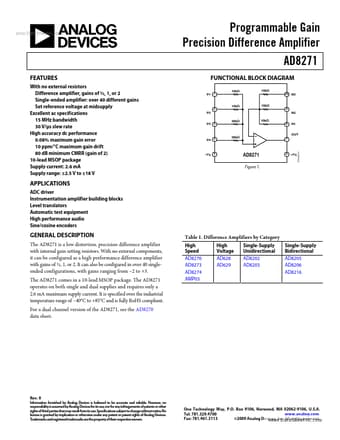

Datasheet Preview: AD8271 📥 Download PDF (834.57kb)
Page 2 of AD8271 Page 3 of AD8271

AD8271 Application

  • Applications ADC driver Instrumentation amplifier building blocks Level translators Automatic test equipment High performance audio Sine/cosine enco
