AD8274 Datasheet, Amplifier, Analog Devices

AD8274 Features

  • Amplifier Very low distortion 0.00025% THD + N (20 kHz) 0.0015% THD + N (100 kHz) Drives 600 Ω loads Excellent gain accuracy 0.03% maximum gain error 2 ppm/°C maximum gain drift Gain of ½ or 2 AC

PDF File Details

Part number:

AD8274

Manufacturer:

Analog Devices ↗

File Size:

428.29kb

Download:

📄 Datasheet

Description:

Precision difference amplifier. The AD8274 is a difference amplifier that delivers excellent ac and dc performance. Built on Analog Devices, Inc., proprietary iPolar

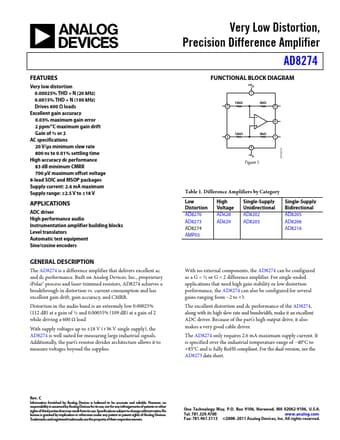

Datasheet Preview: AD8274 📥 Download PDF (428.29kb)
Page 2 of AD8274 Page 3 of AD8274

AD8274 Application

  • Applications ADC driver High performance audio Instrumentation amplifier building blocks Level translators Automatic test equipment Sine/cosine enco
