AD8641 - JFET Amplifiers

Datasheet Summary

Description

The AD8641/AD8642/AD8643 are low power, precision JFET input amplifiers featuring extremely low input bias current and rail-to-rail output.

Features

  • Low supply current: 250 μA max Very low input bias current: 1 pA max Low offset voltage: 750 μV max Single-supply operation: 5 V to 26 V Dual-supply operation: ±2.5 V to ±13 V Rail-to-rail output Unity-gain stable No phase reversal SC70 package.

📥 Download Datasheet

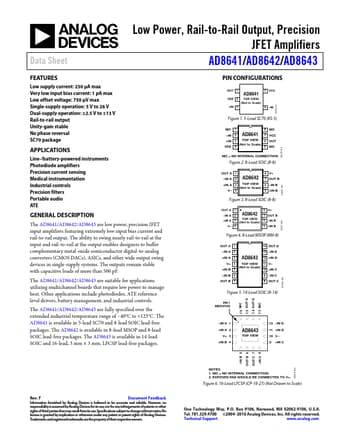

Datasheet preview – AD8641

Datasheet Details

Part number AD8641
Manufacturer Analog Devices
File Size 302.41 KB
Description JFET Amplifiers
Datasheet download datasheet AD8641 Datasheet
Additional preview pages of the AD8641 datasheet.

📁 Similar Datasheet

  • AD82010 - Mono Filter-less Digital Audio Amplifier (ESMT)
  • AD82050 - Mono Digital Audio Amplifier (ESMT)
  • AD82088 - Mono Digital Audio Amplifier (ESMT)
  • AD82088D - 2x25W Stereo / 1x50W Mono Digital Audio Amplifier (ESMT)
  • AD82120 - Mono Digital Audio Amplifier (ESMT)
  • AD82128 - Digital Audio Amplifier (ESMT)
  • AD82129 - Mono Digital Audio Amplifier (ESMT)
  • AD82178 - Mono Digital Audio Amplifier (ESMT)
  • AD82550A - Stereo Digital Audio Amplifier (Elite Semiconductor Memory Technology)
  • AD82551A - Stereo Digital Audio Amplifier (Elite Semiconductor Memory Technology)
Other Datasheets by Analog Devices
  • AD8642 - JFET Amplifiers
  • AD8643 - JFET Amplifiers
  • AD8644 - Single and Quad +18 V Operational Amplifiers
  • AD8646 - 24 MHz Rail-to-Rail Amplifiers
  • AD8647 - 24 MHz Rail-to-Rail Amplifiers
  • AD8648 - 24 MHz Rail-to-Rail Amplifiers
  • AD8600 - 16-Channel/ 8-Bit Multiplying DAC
  • AD8601 - Input/Output Wideband Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
Data Sheet Low Power, Rail-to-Rail Output, Precision JFET Amplifiers AD8641/AD8642/AD8643 FEATURES Low supply current: 250 μA max Very low input bias current: 1 pA max Low offset voltage: 750 μV max Single-supply operation: 5 V to 26 V Dual-supply operation: ±2.5 V to ±13 V Rail-to-rail output Unity-gain stable No phase reversal SC70 package APPLICATIONS Line-/battery-powered instruments Photodiode amplifiers Precision current sensing Medical instrumentation Industrial controls Precision filters Portable audio ATE GENERAL DESCRIPTION The AD8641/AD8642/AD8643 are low power, precision JFET input amplifiers featuring extremely low input bias current and rail-to-rail output.
