AD8646 - 24 MHz Rail-to-Rail Amplifiers

This page provides the datasheet information for the AD8646, a member of the AD8647 24 MHz Rail-to-Rail Amplifiers family.

Datasheet Summary

Description

The AD8646 and the AD8647 are the dual, and the AD8648 is the quad, rail-to-rail, input and output, single-supply amplifiers featuring low offset voltage, wide signal bandwidth, low input voltage, and low current noise.

The AD8647 also has a low power shutdown function.

Features

  • Offset voltage: 2.5 mV maximum Single-supply operation: 2.7 V to 5.5 V Low noise: 8 nV/√Hz Wide bandwidth: 24 MHz Slew rate: 11 V/μs Short-circuit output current: 120 mA Qualified for automotive.

📥 Download Datasheet

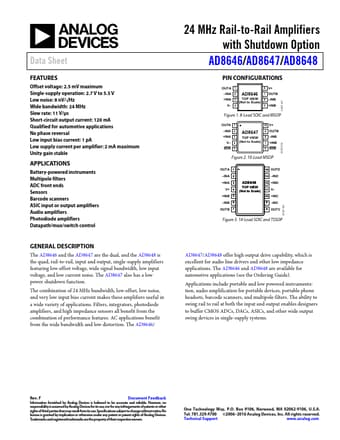

Datasheet preview – AD8646

Datasheet Details

Part number AD8646
Manufacturer Analog Devices
File Size 533.84 KB
Description 24 MHz Rail-to-Rail Amplifiers
Datasheet download datasheet AD8646 Datasheet
Additional preview pages of the AD8646 datasheet.
