AD9002 - High Speed 8-Bit Monolithic A/D Converter

Datasheet Summary

Description

The AD9002 is an 8-bit, high speed, analog-to-digital converter.

The AD9002 is fabricated in an advanced bipolar process that allows operation at sampling rates in excess of 150 MSPS.

Features

  • 150 MSPS ENCODE Rate Low Input Capacitance: 17 pF Low Power: 750 mW.
  • 5.2 V Single Supply MIL-STD-883 Compliant Versions Available.

📥 Download Datasheet

Datasheet preview – AD9002

Datasheet Details

Part number AD9002
Manufacturer Analog Devices
File Size 265.24 KB
Description High Speed 8-Bit Monolithic A/D Converter
Datasheet download datasheet AD9002 Datasheet
Additional preview pages of the AD9002 datasheet.

📁 Similar Datasheet

  • AD9256 - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD9256H - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD92580 - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD92580C - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD9700 - Video Dispaly D/A Converter (ETC)
Other Datasheets by Analog Devices
  • AD9000 - High Speed 6-Bit A/D Converter
  • AD9006 - A/D Converter
  • AD9007 - A/D Converter
  • AD9012 - High Speed 8-Bit TTL A/D Converter
  • AD9014 - A/D Converter
  • AD9016 - A/D Converter
  • AD9020 - 10-Bit 60 MSPS A/D Converter
  • AD9022 - 12-Bit 20 MSPS Monolithic A/D Converter

Full PDF Text Transcription

Click to expand full text

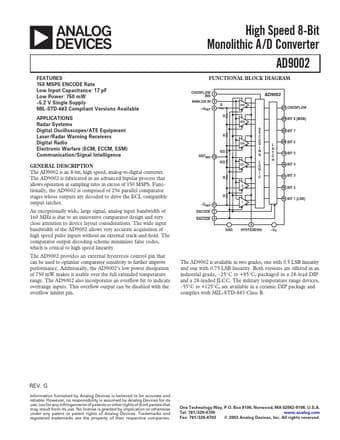

a High Speed 8-Bit Monolithic A/D Converter AD9002 FEATURES 150 MSPS ENCODE Rate Low Input Capacitance: 17 pF Low Power: 750 mW –5.2 V Single Supply MIL-STD-883 Compliant Versions Available APPLICATIONS Radar Systems Digital Oscilloscopes/ATE Equipment Laser/Radar Warning Receivers Digital Radio Electronic Warfare (ECM, ECCM, ESM) Communication/Signal Intelligence GENERAL DESCRIPTION The AD9002 is an 8-bit, high speed, analog-to-digital converter. The AD9002 is fabricated in an advanced bipolar process that allows operation at sampling rates in excess of 150 MSPS. Functionally, the AD9002 is comprised of 256 parallel comparator stages whose outputs are decoded to drive the ECL compatible output latches.
