AD9012 - High Speed 8-Bit TTL A/D Converter

Datasheet Summary

Description

The AD9012 is an 8-bit, ultrahigh speed, analog-to-digital converter.

The AD9012 is fabricated in an advanced bipolar process that allows operation at sampling rates up to 100 megasamples/second.

Features

  • 100 MSPS ENCODE Rate Very Low Input Capacitance.
  • 16 pF Low Power.
  • 1 W TTL Compatible Outputs MIL-STD-883 Compliant Versions Available.

📥 Download Datasheet

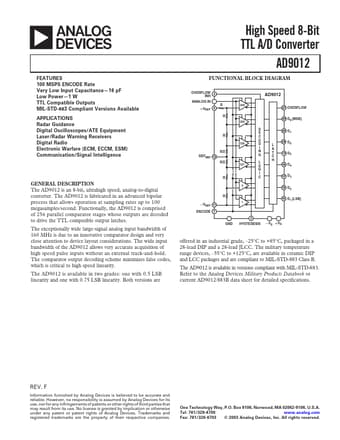

Datasheet preview – AD9012
