AD9240

Monolithic A/D Converter

AD9240 Features

* Monolithic 14-Bit, 10 MSPS A/D Converter Low Power Dissipation: 285 mW Single +5 V Supply Integral Nonlinearity Error: 2.5 LSB Differential Nonlinearity Error: 0.6 LSB Input Referred Noise: 0.36 LSB Complete: On-Chip Sample-and-Hold Amplifier and Voltage Reference Signal-to-Noise and Distortion Rati

AD9240 General Description

The AD9240 is a 10 MSPS, single supply, 14-bit analog-todigital converter (ADC). It combines a low cost, high speed CMOS process and a novel architecture to achieve the resolution and speed of existing hybrid implementations at a fraction of the power consumption and cost. It is a complete, monolith.

AD9240 Datasheet (427.02 KB)

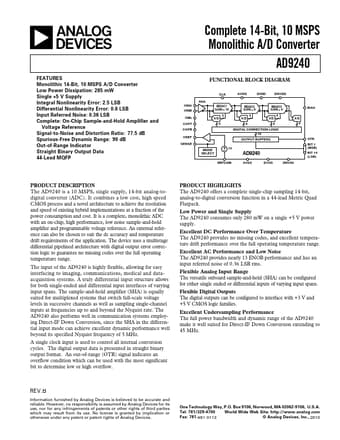

Preview of AD9240 PDF

Datasheet Details

Part number:

AD9240

Manufacturer:

Analog Devices ↗

File Size:

427.02 KB

Description:

Monolithic a/d converter.
