AD9241 - Complete 14-Bit/ 1.25 MSPS Monolithic A/D Converter

Analog Devices

📥 Download Datasheet

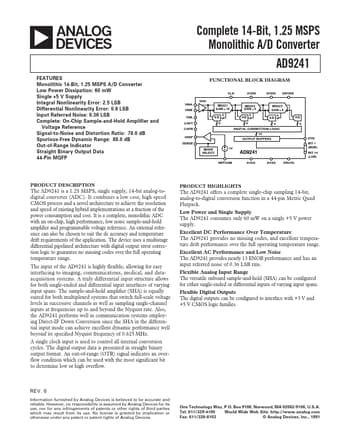

AD9241 Datasheet Preview — Preview of AD9241 PDF

Datasheet Details

Part number	AD9241
Manufacturer	Analog Devices
File Size	495.08 KB
Description	Complete 14-Bit/ 1.25 MSPS Monolithic A/D Converter
Datasheet	AD9241_AnalogDevices.pdf

AD9241 Product details

Description

PRODUCT HIGHLIGHTS The AD9241 is a 1.25 MSPS, single supply, 14-bit analog-todigital converter (ADC).It combines a low cost, high speed CMOS process and a novel architecture to achieve the resolution and speed of existing hybrid implementations at a fraction of the power consumption and cost.It is a complete, monolithic ADC with an on-chip, high performance, low noise sample-and-hold amplifier and programmable voltage reference.An external reference can also be chosen to suit the dc accurac

Features

Monolithic 14-Bit, 1.25 MSPS A/D Converter Low Power Dissipation: 60 mW Single +5 V Supply Integral Nonlinearity Error: 2.5 LSB Differential Nonlinearity Error: 0.6 LSB Input Referred Noise: 0.36 LSB Complete: On-Chip Sample-and-Hold Amplifier and Voltage Reference Signal-to-Noise and Distortion Ratio: 78.0 dB Spurious-Free Dynamic Range: 88.0 dB Out-of-Range Indicator Straight Binary Output Data 44-Pin MQFP VINA VINB CML CAPT CAPB VREF SENSE Complete 14-Bit, 1.25 MSPS Monolithic A/D Converter.
