AD9380

Analog/HDMI Dual-Display Interface

AD9380 Features

* Internal key storage for HDCP Analog/HDMI dual interface Supports high bandwidth digital content protection RGB-to-YCbCr 2-way color conversion Automated clamping level adjustment 1.8 V/3.3 V power supply 100-lead, Pb-free LQFP RGB and YCbCr output formats Analog interface 8-bit triple ADC 100 MSPS

AD9380 General Description

The AD9380 offers designers the flexibility of an analog interface and high definition multimedia interface (HDMI) receiver integrated on a single chip. Also included is support for high bandwidth digital content protection (HDCP). The AD9380 is a complete 8-bit, 150 MSPS, monolithic analog interfac.

AD9380 Datasheet (1.02 MB)

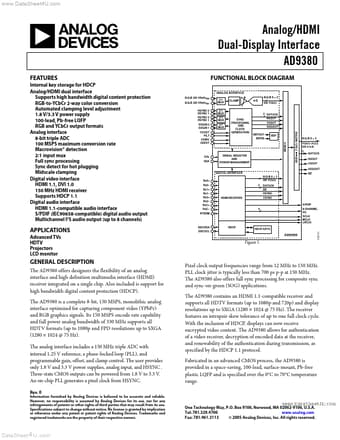

Preview of AD9380 PDF

Datasheet Details

Part number:

AD9380

Manufacturer:

Analog Devices ↗

File Size:

1.02 MB

Description:

Analog/hdmi dual-display interface.
